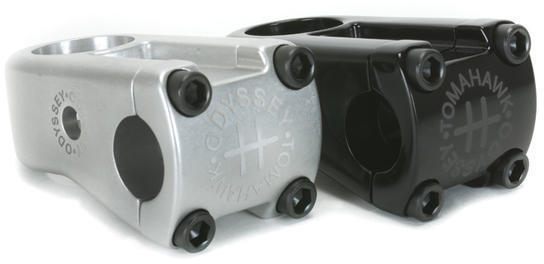

Odyssey Tomahawk Stem

Odyssey Tomahawk Stem
Stem sold individually
$45.00
Clamp Diameter:
22.2mm
Length:
53mm
Rise:
Unavailable
Steerer Diameter:
1-1/8-inch
Please select options

Details

The Tomahawk is based around a list of front-load features that Chase Hawk requested and it is the first front-load stem to use convergent bolt axes for the front cap. This allows the stem to have the separate adjustability and “look” of a traditional four bolt front-loader, but with a smoother overall shape. It also eliminates the stresses associated with letting the bolt holes break through the outer face of the stem body. As a bonus, this means that the stem still looks “normal” when it is flipped to raise the handlebars. You’ll also notice that the Tomahawk makes use of the steerer tube clamping design that is found in the Elementary stem. With this unique configuration the locking bolt for the fork’s steerer tube remains straight during tightening (rather than bending as the wedges rotate around the steerer). The stem’s fully internal clamp design also means that the back of the body can be bolt-free, and knee-friendly. For the Tomahawk, Odyssey invested in full forging tools for the stem’s cap and body in order to maximize the strength of the material used. This stem was designed as a forging (rather than simply machining it) because forging improves a part’s strength by forming the ideal grain structure that is needed for a given shape. As a benefit, this process also means that Odyssey can offer the stem at a reasonable selling price.

FEATURES
- Front-load design
- Chase Hawk approved
- Converging front bolt axes eliminate typical through-hole stresses and improve the stem’s look when flipped
- Easily accessible internal clamping system
- Forged 6061-T6 aluminum maximizes strength and minimizes waste

SPECS
- 53mm reach
- 9.5mm rise or 22.5mm when flipped 9.4 oz (266g)

Part Numbers

Option UPC MPN Store SKU
22.2mm / Black / 53mm / Unavailable / 1-1/8-inch 630950150939 H-148-BK
22.2mm / Raw / 53mm / Unavailable / 1-1/8-inch 630950150946 H-148-RAW 45909
