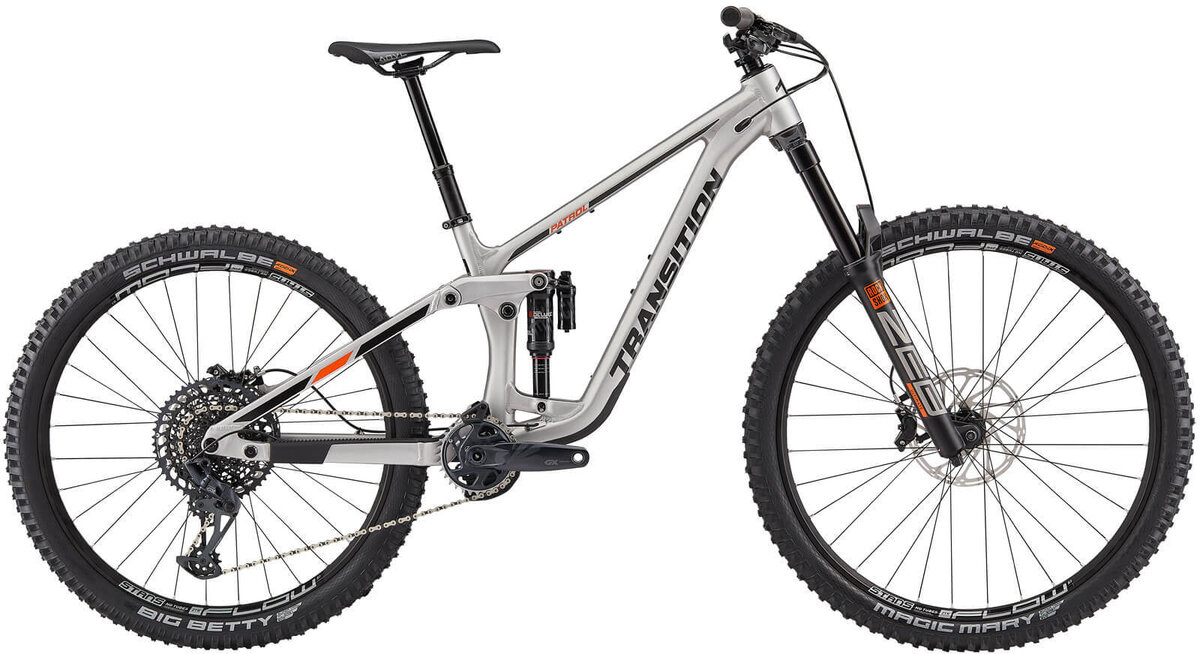

Transition Patrol Alloy GX Code (Raw)

Being one of the longest standing bikes in our lineup, it was the obvious choice to mix it up. Updated geometry to accommodate the 29" front / 27.5" rear wheels and revised suspension tune might just make you ride all day, and then all night. Jibbing, jumping, pumping and hooting your way down the trail, the updated Patrol loves to party. From bike parks to your local trails, the Patrol isn't concerned with where you ride but rather how much fun you are having.

FRAME Patrol Carbon 160mm Patrol Alloy 160mm Patrol Alloy 160mm
REAR SHOCK "Fox Float X
Performance Elite (205x60)" "Fox Float X2 Factory
2 Position (205x60)" "RockShox Super Deluxe
Ultimate Air (205x60)"
FORK "Fox Float 38 Performance Elite
160mm Travel/44mm Offset" "Fox Float 38 Grip 2 Factory
160mm Travel/44mm Offset" "RockShox ZEB Ultimate
160mm Travel/44mm Offset"
HEADSET FSA NO.55R/57 FSA NO.55R/57 FSA NO.55R/57
STEM ANVL Swage (40mm) ANVL Swage (40mm) ANVL Swage (40mm)
HANDLEBAR "ANVL Mandrel Alloy 35
SM (800x20)
MD/LG/XL (800x30)" "ANVL Mandrel Alloy 35
SM (800x20)
MD/LG/XL (800x30)" "ANVL Mandrel Alloy 35
SM (800x20)
MD/LG/XL (800x30)"
GRIPS ODI Elite Flow ODI Elite Flow ODI Elite Flow
SADDLE SDG Bel Air 3 ANVL Forge Cromo ANVL Forge Cromo
SEATPOST OneUp Dropper Post OneUp Dropper Post OneUp Dropper Post
BRAKES TRP DH-R Evo Shimano XT M8120 SRAM Code RSC
ROTORS TRP R1 2.3 (203mm) Shimano RT86 (203mm) SRAM Centerline (200mm)
SHIFTER SRAM GX Eagle Shimano XT M8100 SRAM GX Eagle
DERAILLEUR SRAM GX Eagle Shimano XT M8100 SRAM GX Eagle
CASSETTE SRAM XG 1275 (10-52t) Shimano XT M8100 (10-51t) SRAM XG 1275 (10-52t)
CHAIN SRAM GX Eagle Shimano XT M8100 SRAM GX Eagle
CHAINGUIDE OneUp Bash Guide OneUp Bash Guide OneUp Bash Guide
CRANK SRAM GX Eagle DUB (32t/165mm) Shimano XT M8100 (32t/165mm) SRAM GX Alloy DUB (32t/165mm)
RIMS RaceFace Aeffect R DT Swiss EX 1700 Spline 30 Stans Flow S1
SPOKES RaceFace 2.0/1.7/2.0 DT Swiss Competition Sapim Race Double Butted
HUBS RaceFace Trace 28H DT Swiss 350 Straight Pull 36SL Stans Neo Durasync
TIRE/FRONT Schwalbe Magic Mary, Super Trail, Soft (29x2.4) Schwalbe Magic Mary, Super Trail, Soft (29x2.4) Schwalbe Magic Mary, Super Trail, Soft (29x2.4)
TIRE/REAR Schwalbe Big Betty, Super Trail, Soft (27.5x2.4) Schwalbe Big Betty, Super Trail, Soft (27.5x2.4) Schwalbe Big Betty, Super Trail, Soft (27.5x2.4)
INCLUDED Tubeless Valves & Sealant Tubeless Valves & Sealant Tubeless Valves & Sealant
WEIGHT TBD 34.6 lbs / 15.69 kg (Size MD) 34.1 lbs / 15.47 kg (Size MD)
